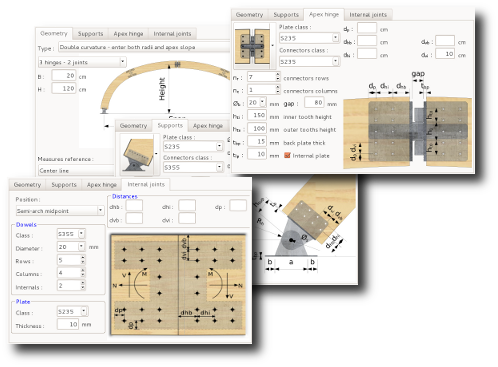

Arch structures are found typically in sport buildings, tennis courts, swimming pools and others. They pose some challenges to designer, mostly because of the high number of load cases required by Rules and because loads on elements depends highly on arch geometry. This usally means that n each geometry change the whole loads are to be recomputed and applied to new structural schema. With TimberStruct all this is done automatically: on geometry changes permanent, snow, wind and seismic loads are recomputed to suit the new geometry, allowing the Designer to spend its valuable time to optimize architectural details without bothering of repetitive tasks. The application has many archs typologies: two or three hinged, with different support and hinges types, with single or double curvatures and others. Internal joints are also foreseen to suit transport needs for big structures. As for all other TimberStruct's elements, calculations happens in real time at each data change, with the quick overview pane reflecting curent calculation status and the detailed report with complete results and parts drawings. A DXF export button creates a detailed arch drawing, with all supports, joints and hinges, which can be imported in most cad applications.

In addition of Italian and English languages, embedded in TimberStruct since first version, we added now German localization.

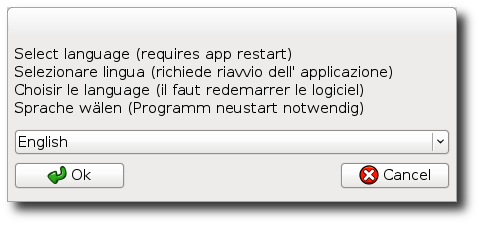

The application will select automatically the correct language based on user's locale; user can change working language if he/she needs to create a report for foreign Countries.

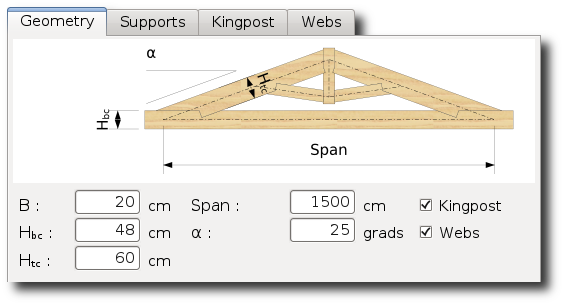

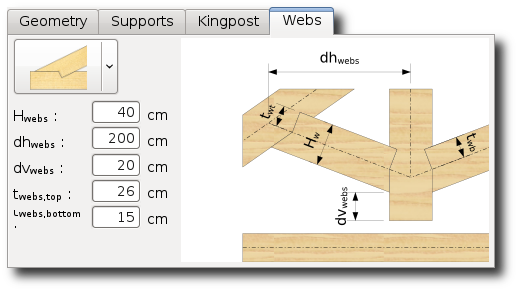

First composed element introduced in TimberStruct is the classical simple all-timber truss with single bottom chord, as usual with uniformly distributed og generic loads. The truss is analyzed in all its aspects and shapes, with or without kingpost and webs.








Calculation includes joints and fire resistance.

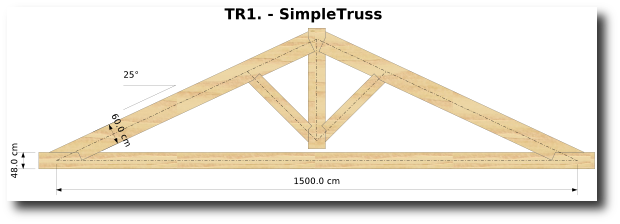

As for all other supported elements, the report will include the completed and quoted truss drawing.








It's also possible to export the drawing in DXF format, readable by most common CAD applications.

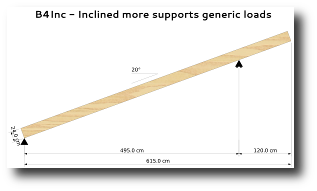

On customers requests we added handling of inclined beams, simply or more supported, with uniformly distributed or generic loads. Doing this it was necessary to add the handling of load direction, which can now be introduced for each load as vertical, perpendicular o weight-vertical :






As for all supported elements, a quotet drawing of beam will be included in final printout :
